Ordering Notes:
1. All Sper Inline Water Quality Meters and Sensors are sold separately – please be sure to add the appropriate sensor (listed above) when purchasing your meter – one of each is required for a complete system.

2. All Inline Water Quality Meters and Sensors ship direct from the factory. Please allow 10-15 business days for shipping and handling.

---

Inline Residual Chlorine Meter

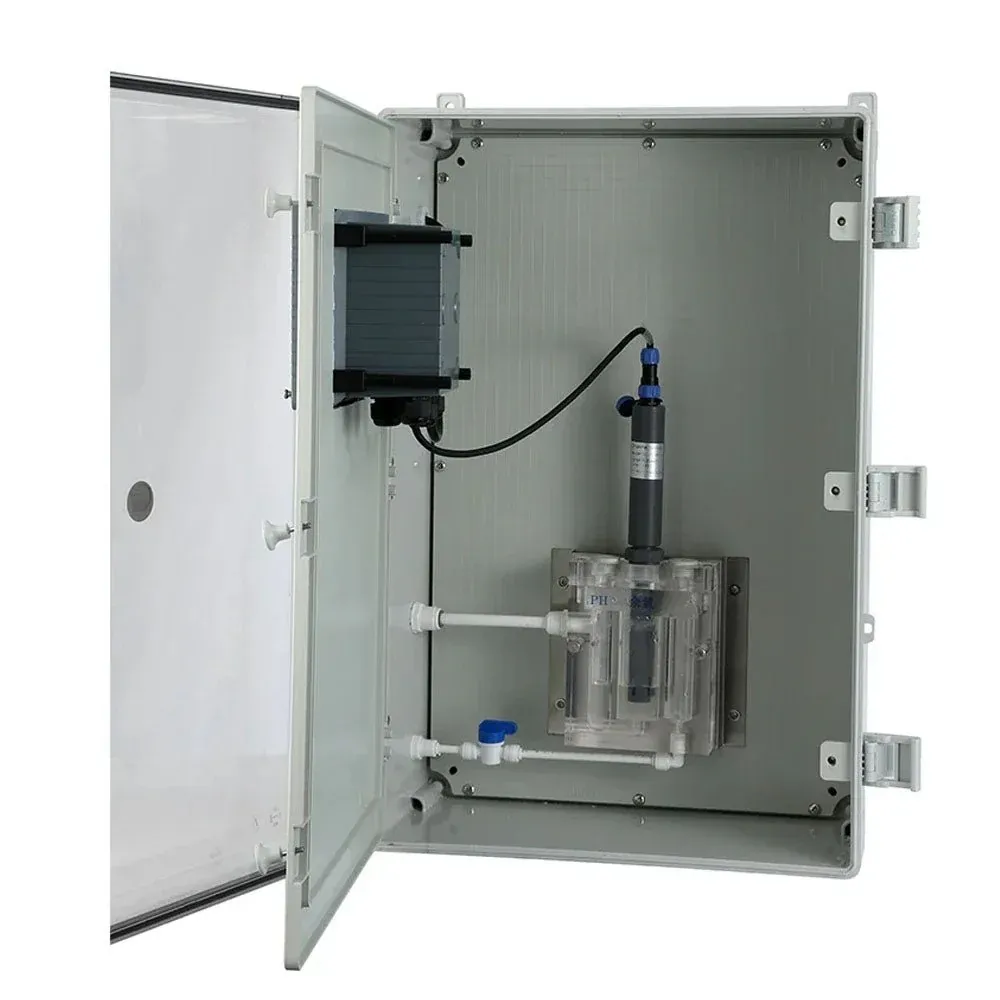

The Inline Residual Chlorine Meter seamlessly integrates a digital residual chlorine sensor, flow cell, piping, and valve into a single unit. This unified system allows for centralized monitoring and management via a controller. It combines online water quality analysis, database management, and calibration functions, making chlorine data collection and analysis straightforward and efficient.

Applications:

• Continuous monitoring of residual chlorine in clean water
• Chlorine monitoring in swimming pools
• Measurement of chlorine in food and beverage water
• Potable water quality assessment
• Process liquid monitoring
• Evaluation of treated process water
• Monitoring of pipe networks and secondary water supplies

Features:

Plug and Play
With precision digital residual chlorine sensor

Bubble Rejection System
Classic flow cell design

Automatic Drain Function
Less manual maintenance

Wide Power Range
85V AC ~ 265V AC

Anti-Electromagnetic Interface
Anti-electromagnetic interference and surge protection

Power Off Protection Function
Saves measurement data completely on power disruption

Specifications

Product	Inline Residual Chlorine Meter
Measured Parameters	Residual Chlorine, Temperature
Measuring Range	0-60℃ 0-20 mg/L (pH:5.5-10.5)
Unit	Turbidity: mg/L Temperature: ℃
Resolution	0.01 mg/L 0.1℃
Accuracy	Residual chlorine: ±2% FS, Temperature ±0.5℃
Power	AC 85-265V 50/60Hz
Current output	4-20mA
Communication	RS485 Modbus RTU
Protection	IP65
Relay	2 relays, 5A/250V AC      5A/30V DC
Wireless	Optional (for Mobile App and Website)
Flow	15L-30L/H
Overall Dimensions	600mm × 400mm × 230m（L×W×H)
Inlet	6mm
Outlet	10mm
Protection	IP65
